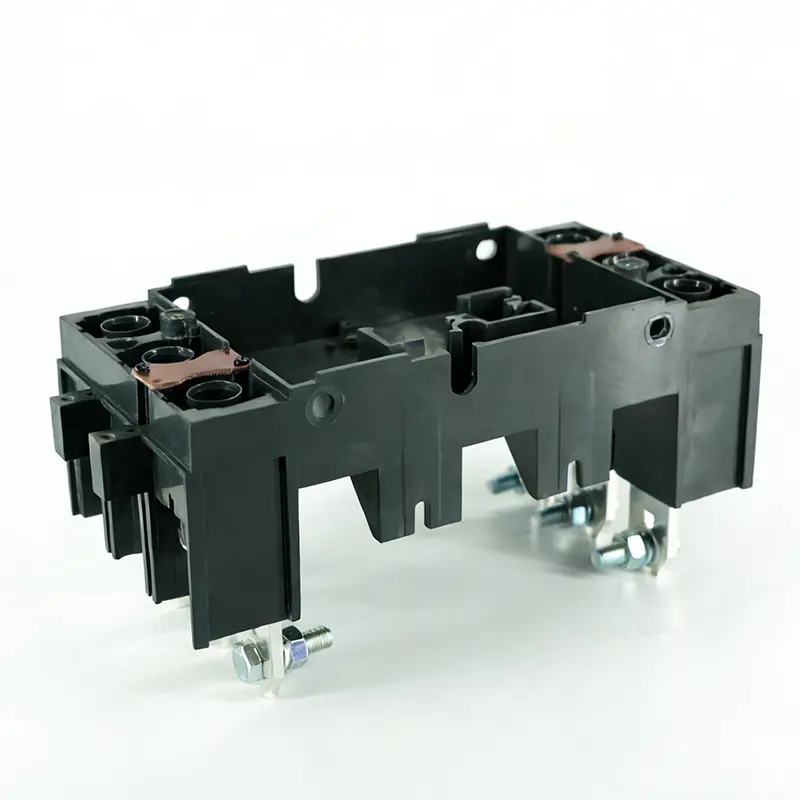

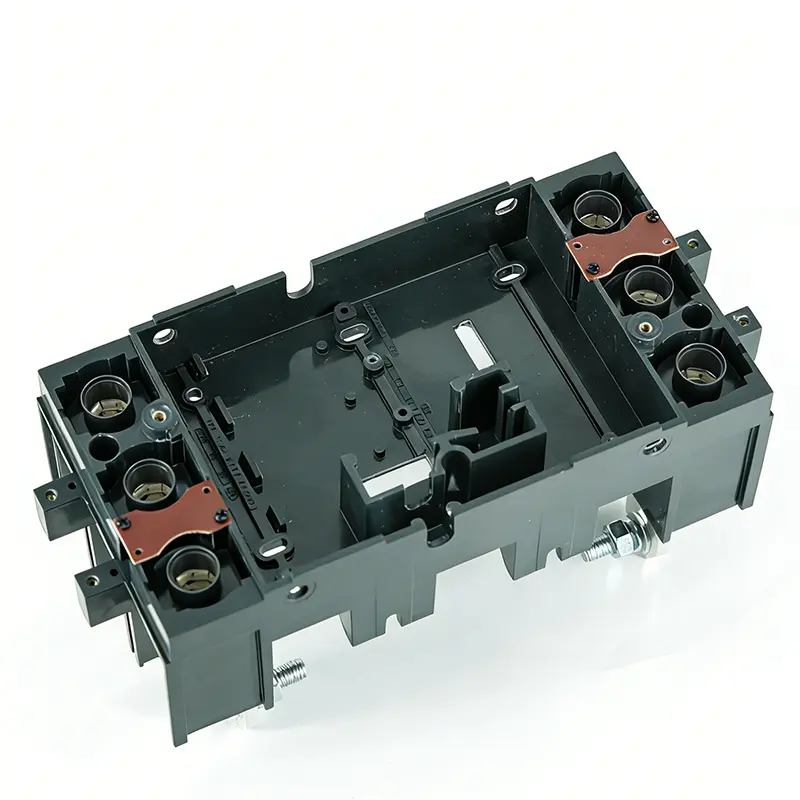

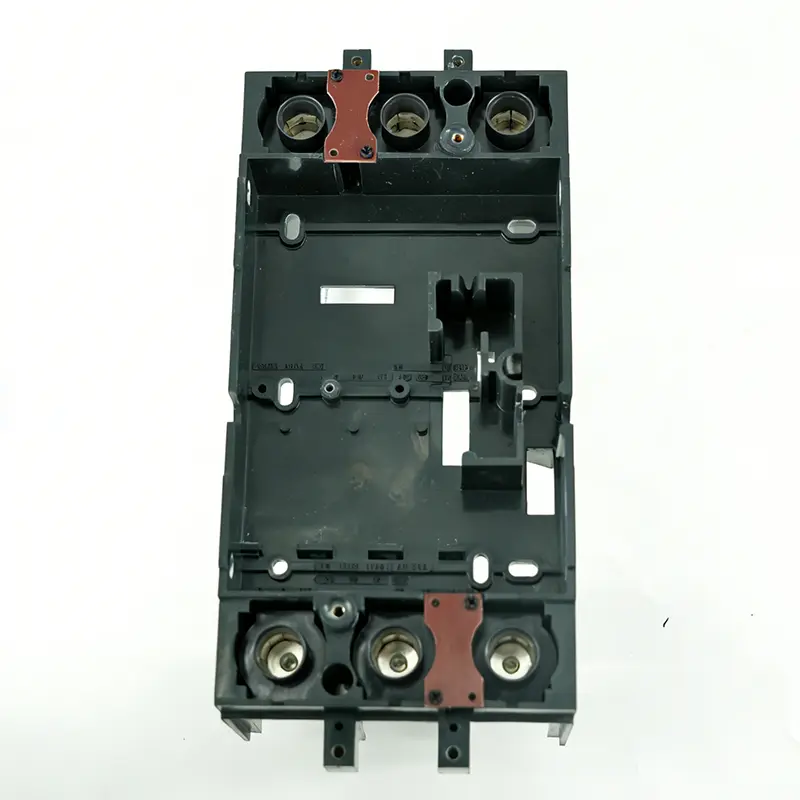

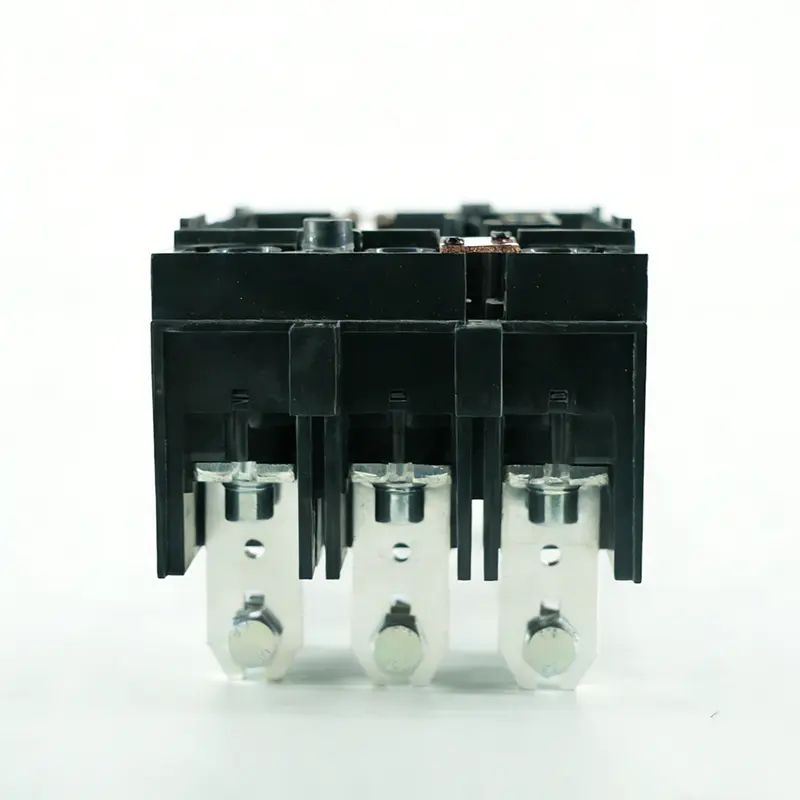

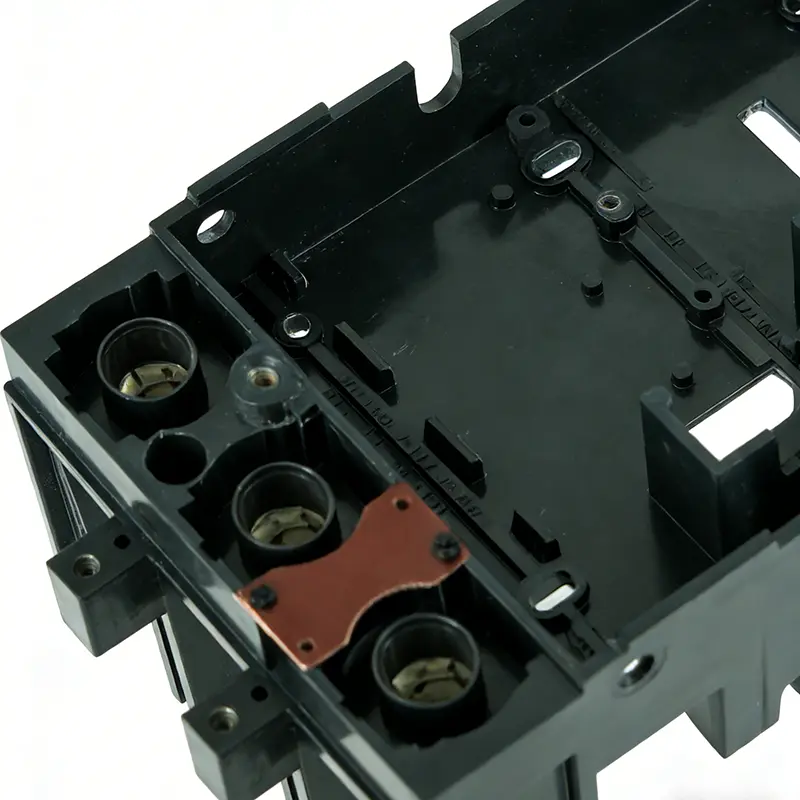

China MCCB Front-Plug-in and Back-Plug-in Layouts from Reliable Suppliers & Factory for Easy Installation

Front-plug-in and back-plug-in configurations are essential for molded case circuit breakers (MCCBs), offering versatile wiring and cable entry/exit options. The primary distinction between these layouts lies in the orientation of the terminals, affecting ease of operation. A significant advantage of both designs is the swift plug-in and replacement process, allowing for seamless maintenance without the hassle of rewiring. As a leading factory and supplier in China, we provide high-quality MCCBs that enhance operational efficiency while ensuring reliable performance

Send Inquiry

Product Description

Core role and structural differences

type	core role	Structural features	Operation and Safety
plug-in (front)	It combines quick replacement with intuitive wiring and is compatible with standard cabinet wiring and mass assembly.	The insert base is mounted on the front of the panel, with the terminals facing outwards; wiring is completed on the front of the panel, making installation intuitive and requiring no special drilling.	Replacement can be performed by simply disconnecting the power and unplugging. Wiring and maintenance require space in front of the panel, and live parts are easily accessible, so caution is advised.
plug-in (rear)	This achieves concealed wiring behind the panel and no wiring at the front for maintenance, improving cabinet neatness and operational safety.	The terminals are located at the rear of the panel; the base can be installed through the panel or led to the rear of the panel using extension terminals; holes must be drilled according to specifications.	Replacement requires no wire removal, and front-end operations are less likely to come into contact with live terminals, making it safer; however, space must be reserved behind the board for wiring and heat dissipation.

Key Functions Breakdown

1. Common function
- Quick replacement and maintenance: With the plug-in base and main body, replacement can be performed without disconnecting the wires when a fault occurs, shortening power outage and maintenance time and improving power supply continuity.
- Reduce wiring error rate: The base is pre-connected with power and load wires, and the main body is only responsible for plugging and unplugging, reducing the risk of incorrect or missing connections caused by repeated wiring.
- Adaptable to standardized cabinet sets: Both methods can be integrated into complete designs such as drawer cabinets and fixed cabinets. The base and cabinet body are pre-installed, and the main body is plug-and-play, improving assembly efficiency.
2. Insert-type front panel exclusive function
- Simplified installation and commissioning: Exposed terminals make wiring, calibration, and capacity expansion more intuitive, suitable for mass production and rapid on-site assembly.
- Compatible with common accessories: Adapts to auxiliary handles, electric operating mechanisms, etc. for front panel operation, without additional modification costs.
3. Insert-type panel with exclusive function
- Optimize cabinet layout: hide wiring behind the panel, leaving only the operating surface at the front, reducing cabinet size or increasing component installation density.
- Improved operational safety: When operators are working in front of the panel, it is difficult for them to touch the live terminals on the back of the panel, reducing the risk of electric shock.
- Adaptable to specific installation scenarios, such as back wiring in drawer cabinets, wall-mounted/embedded cabinets, and avoiding excessive space usage for front wiring.

ARM5 /ARM5E(i) plug-in dimensions and installation dimensions

The plug-in type installation dimensions of ARM5 and ARM5E are shown in the table:

Model	C	C1	C2	C3	C4	C5	C6	C7	C8	E	E1	E2	E3	E4	D5
M5-160/250, M5E(i)-160/250	17.5	35	70	54.5	109	144	35	70	105	95	190	87	174	75	37.5
M5-400/630, M5E(i)-400/630	22.5	45	90	71.5	143	188	50	100	145	150	300	137	274	150	75

Model	L	L1	L2	H	H1	B	B1	B2	U	Φd
M5-160/250, M5E(i)-160/250	52.5	105	140	99.5	199	27	45	75	≤32	6
M5-400/630, M5E(i)-400/630	70	140	185	158	315	27	45	100	≤32	6
