Explore our core engineering catalog, designed for extreme applications including solar photovoltaics, mining, and high-breaking capacity environments.
An In-Depth Engineering Analysis of MCCB and ACB Solutions for Complex Commercial and Industrial Power Grids.
In the contemporary industrial landscape, electrical distribution systems form the neural network of infrastructure, commercial real estate, and heavy industrial facilities. The demand for reliable safety mechanisms has never been more critical. As power requirements scale, circuit protection components must adapt to resist higher short-circuit fault levels, higher thermal stresses, and maintain seamless interoperability with remote control automation.
Molded Case Circuit Breakers (MCCBs) serve as the frontline safeguard for electrical circuits spanning from 15A to 1600A. At Acereare Electric, our core R&D efforts are focused on improving the arc-extinguishing capability of our breaker units. In the event of a short circuit, contacts must separate in milliseconds. This separation generates an intense electric arc that must be rapidly cooled, divided, and extinguished within the arc chute.
Our premium models leverage thermal-magnetic and advanced electronic trip units to offer targeted control:
When selecting a circuit breaker, two critical metrics define its ruggedness: the Ultimate Short-Circuit Breaking Capacity (Icu) and the Service Short-Circuit Breaking Capacity (Ics). Measured in kiloamperes (kA), these parameters dictate the maximum fault current the device can safely interrupt without destruction.
Acereare Electric specializes in producing circuit breakers with high breaking capacities reaching up to 200kA. Our proprietary contact systems utilize electromagnetic repulsion forces to accelerate contact separation under fault conditions. Keeping Ics = 100% Icu ensures the circuit breaker remains fully functional even after interrupting a heavy short circuit, providing robust operational reliability to utilities and critical factories worldwide.
| Breaker Series | Rated Current (In) | Rated Voltage (Ue) | Breaking Capacity (Icu) | Trip Unit Type | Key Applications |
|---|---|---|---|---|---|
| ARM1 Series | 16A - 1250A | 400V / 690V | Up to 150kA | Thermal-Magnetic | Commercial distribution & Industrial panels |
| ARXM3 Series | 320A - 800A | 400V / 690V | Up to 100kA | Thermal-Magnetic / Electronic | Mining and heavy machinery power systems |
| ARM3E Series | 32A - 1600A | 400V / 690V | Up to 150kA | Electronic LSIG | Data centers, selective protection schemes |
| ARW1 Series (ACB) | 400A - 6300A | 400V / 690V | Up to 120kA | Intelligent Controller | Main incoming feeders, power plants |
| ARM5HU High-V | 100A - 630A | 800V / 1000V / 1140V | Up to 50kA | Electronic / Thermal-Magnetic | Photovoltaic solar solar arrays & Wind farms |
A trusted original equipment manufacturer (OEM) and joint-stock electrical manufacturing group delivering reliable protection equipment globally.
Founded in 2015, Acereare Electric has established itself as an innovative force in the manufacturing of electrical protection components. Operating two wholly-owned subsidiaries—RuiRui Electric and KeRui Electric—we manage a comprehensive supply chain that handles every step from raw material selection and metal stamping to advanced controller board assembly.
Our craftsmanship spans across two generations, tracing back over 20 years of experience in custom component manufacturing. By coordinating design, molding, and testing internally, we support over 100 strategic commercial partnerships globally.
Our operational framework integrates quality engineering with modern, scalable production facilities.
We provide a complete one-stop service leveraging six distinct processing techniques. Our factories utilize high-precision stamping and automated assembly lines to guarantee structural tolerance limits.
Our dedicated team of 50+ engineers handles 3D design for internal components, stamping dies, and outer housings, executing over 50 custom projects annually.
Operating two manufacturing facilities, we integrate and track components from raw materials to final packaging using ERP and U8 software integrations.
Our testing labs utilize over 150 dedicated analytical instruments. We monitor production through PLM, MES, and BI software to track quality across all operations.
Acereare electrical protection systems are engineered to withstand extreme physical and environmental demands.
Built with low-temperature resistant structural materials, specialized low-temperature lubricants, and thickened protective plating, our breakers operate safely at temperatures down to -40°C.
Tested for up to 72 hours on full assemblies and 48 hours on components. These MCCBs resist corrosion in marine environments, coastal docks, and offshore power systems.
For installations exceeding 2,000 meters, we provide detailed derating guides. Adjustments account for lower air density to ensure reliable insulation performance and cooling.
Our solutions protect building wiring systems and home appliances from damage due to short circuits and overloads, providing reliable service life and simple manual controls.
Designed with thermal barriers, high-temperature plastics, and anti-corrosive treatments. Testing in our 55°C environmental chambers ensures long-term operational stability.
Equipped with built-in metering, edge computing, and communication modules. These smart MCCBs support grid remote control, energy monitoring, and automated fault reporting.
Acereare products undergo comprehensive testing to meet global safety and reliability standards.
We offer customized engineering and manufacturing services to meet specific brand requirements.
Customized brand logos to support your brand identity.
Premium raw materials chosen to ensure long-term mechanical reliability.
Rapid prototyping services to accelerate new product releases.
Tailored structural designs to differentiate your product line in competitive markets.
Custom mold design and die development services (investment refundable based on volume).
Custom auxiliary design, undervoltage trip configurations, and mechanical locks.
Assistance with international test reports and local standard compliance approvals.
Around-the-clock technical support for international partners.
Custom marking, laser etching, and labeling for authorized brands.
Customized retail and export packaging, including inner and outer cartons.
Technical catalogs and data sheets customized to match your branding.
Flexible order management, including small minimum order quantities for niche lines.

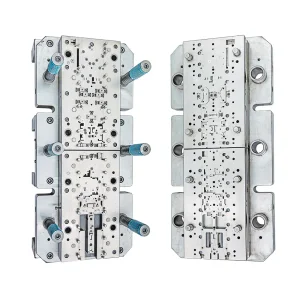

Explore our high breaking capacity MCCB systems, smart Air Circuit Breakers, and custom mental stamping components.
Expert Engineering Solutions to Common Electrical Protection Queries
