Product Description

ARW1

ARW1 Highlights

Several components work together in an ACB. One of the main features is a blast valve. When the arcing contacts separate and the arc forms, the blast valve opens arc chutes. Pressurized air pushes through the arc, disconnecting it from the contacts.
The pressurized air pushes the arc towards arcing probes and rings. These are conductive elements that help to move the arc away from the contacts. As the arcing contacts get farther apart, the arcing probes and coils get closer together, allowing them to attract the arc.
The arc is moved into the chutes toward an arcing electrode. Eventually, the arc is pushed through the chutes and stretched until it is completely eliminated.

Main performance index of ARW1 series circuit breaker

Model		ARW1-2000
Rated current In (A) 40℃		630A, 800A, 1000A, 1250A, 1600A, 2000A
Rated current of frame size Inm (A)		2000A
Usage category		Category B
Number of poles (P)		3P	4P
Rated working voltage Ue (V)		AC400V
Rated ultimate short-circuit breaking capacity Icu (kA)		80KA
Rated service short-circuit breaking capacity Ics (kA)		80KA
Rated short-time withstand current Icw (kA/s)		65KA/s
Rated working voltage Ue (V)		AC690V
Rated ultimate short-circuit breaking capacity Icu (kA)		65KA
Rated service short-circuit breaking capacity Ics (kA)		65KA
Rated short-time withstand current Icw (kA/s)		50KA/s
Rated insulation voltage Ui (V)		1000V
Rated impulse withstand voltage Uimp (V)		12kv
Arcing distance (mm)		0
Installation method		Draw-out type, fixed type
Electromagnetic compatibility (EMC)		Environment A
Isolation applicability		Isolation
*WLH (mm)*	3P	410×432×400	370×402×310
	4P	505×460×575	466×402×310
	package 3p	505×460×575
	package 4p	/
	Weight 3p	7200G	4500G
	Weight 4p	9000G	5400G

Overall and installation dimensions of circuit breaker

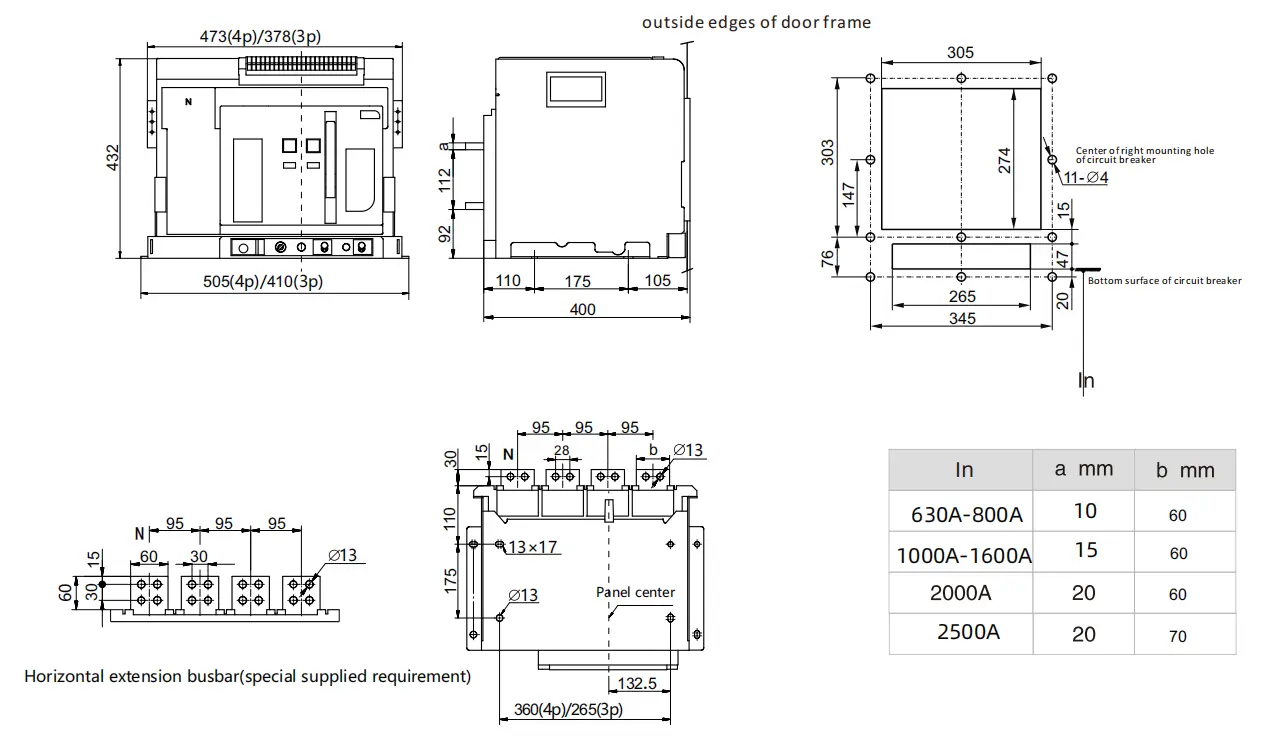

ARW1-2000 fixed circuit breaker overall and installation dimension

fixed circuit breaker overall and installation dimension

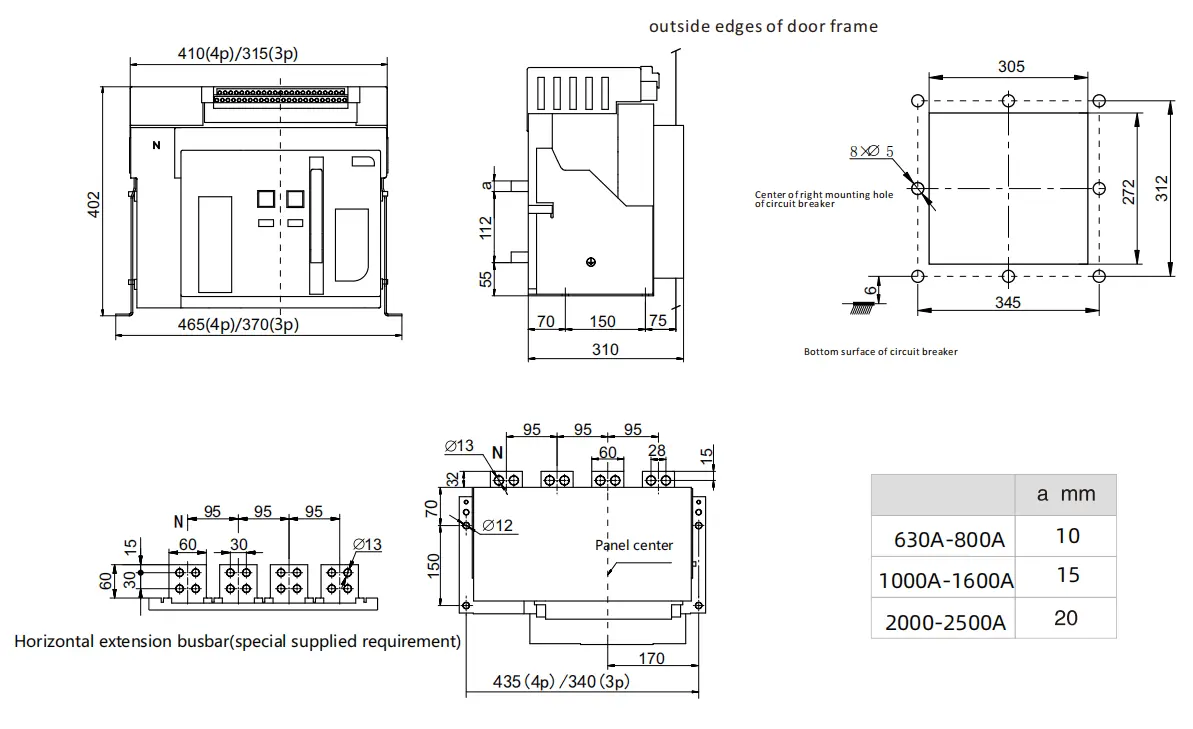

ARW1-2000 draw-out circuit breaker overall and installation dimension

draw-out circuit breaker overall and installation dimension

Accessories of Air circuit breaker

Accessories of Air circuit breaker
