The temperature of the surrounding air is -40°C to +40°C; the average value of 24h does not exceed +35°C, and the lower limit of the temperature of the surrounding air is -40°C (except for special declarations).
The altitude of the general type shall not exceed 2000m. Altitudes above 2000m shall be used with reduced capacity, and the plateau type shall not exceed 5000m.
At a maximum temperature of +40°C, the relative humidity of the air shall not exceed 50%. At lower temperatures, a higher relative humidity may be permitted, for example, 90% at 20°C.
Pollution class: Class 3
Protection class: IP30

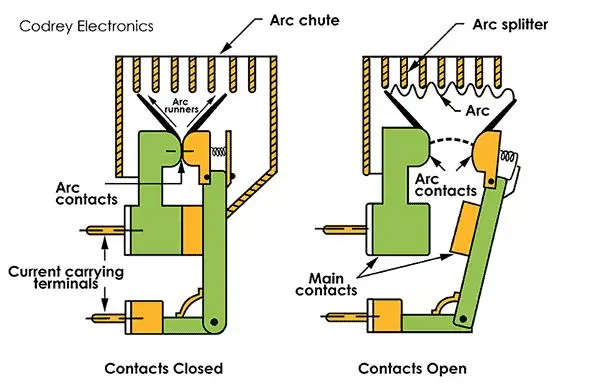

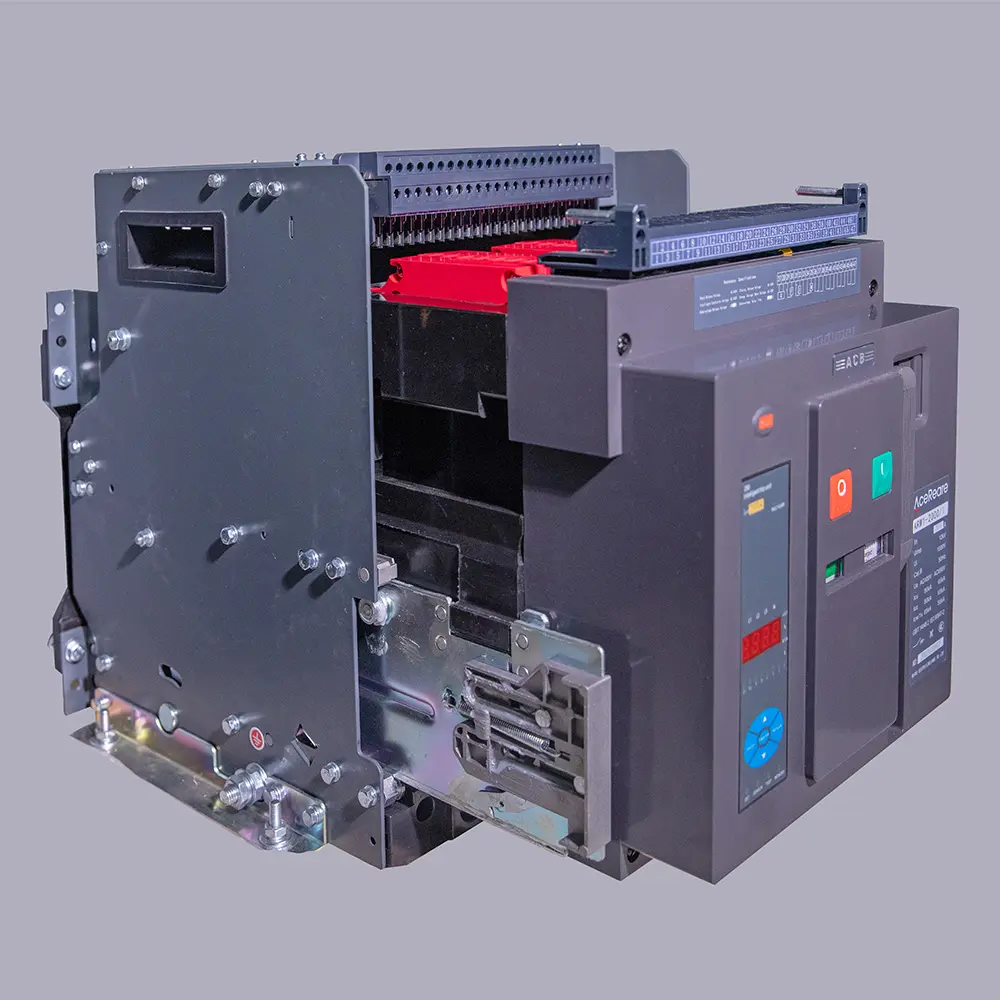

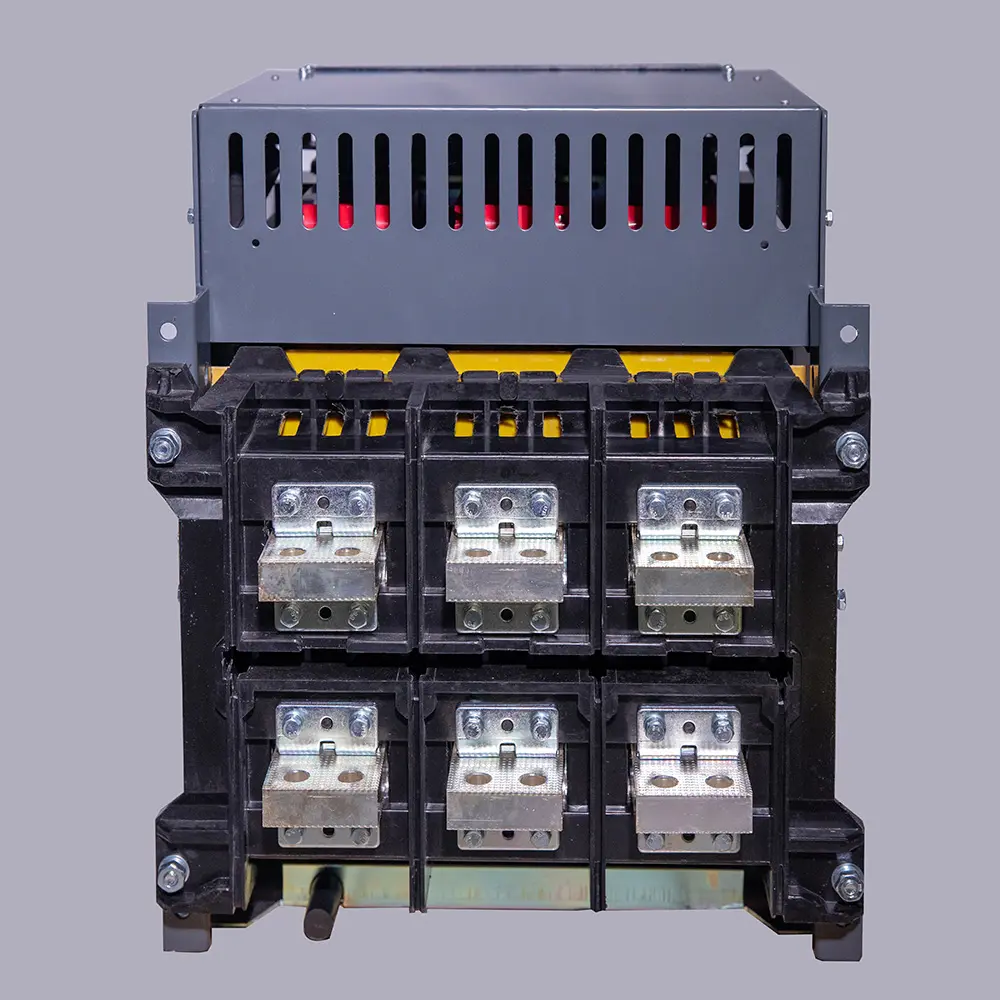

| Model | ARW1-6300 | ||
| Rated current In (A) 40℃ | 4000A, 5000A, 6300A | ||
| Rated current of frame size Inm (A) | 6300A | ||
| Usage category | Category B | ||
| Number of poles (P) | 3P | 4P | |
| Rated working voltage Ue (V) | AC400V | ||
| Rated ultimate short-circuit breaking capacity Icu (kA) | 120KA | ||
| Rated service short-circuit breaking capacity Ics (kA) | 100KA | ||
| Rated short-time withstand current Icw (kA/s) | 100KA/s | ||
| Rated working voltage Ue (V) | AC690V | ||
| Rated ultimate short-circuit breaking capacity Icu (kA) | 85KA | ||
| Rated service short-circuit breaking capacity Ics (kA) | 85KA | ||
| Rated short-time withstand current Icw (kA/s) | 85KA/s | ||
| Rated insulation voltage Ui (V) | 1000V | ||
| Rated impulse withstand voltage Uimp (V) | 12kv | ||
| Arcing distance (mm) | 0 | ||
| Installation method | Draw-out type, fixed type | ||
| Electromagnetic compatibility (EMC) | Environment A | ||
| Isolation applicability | Isolation | ||

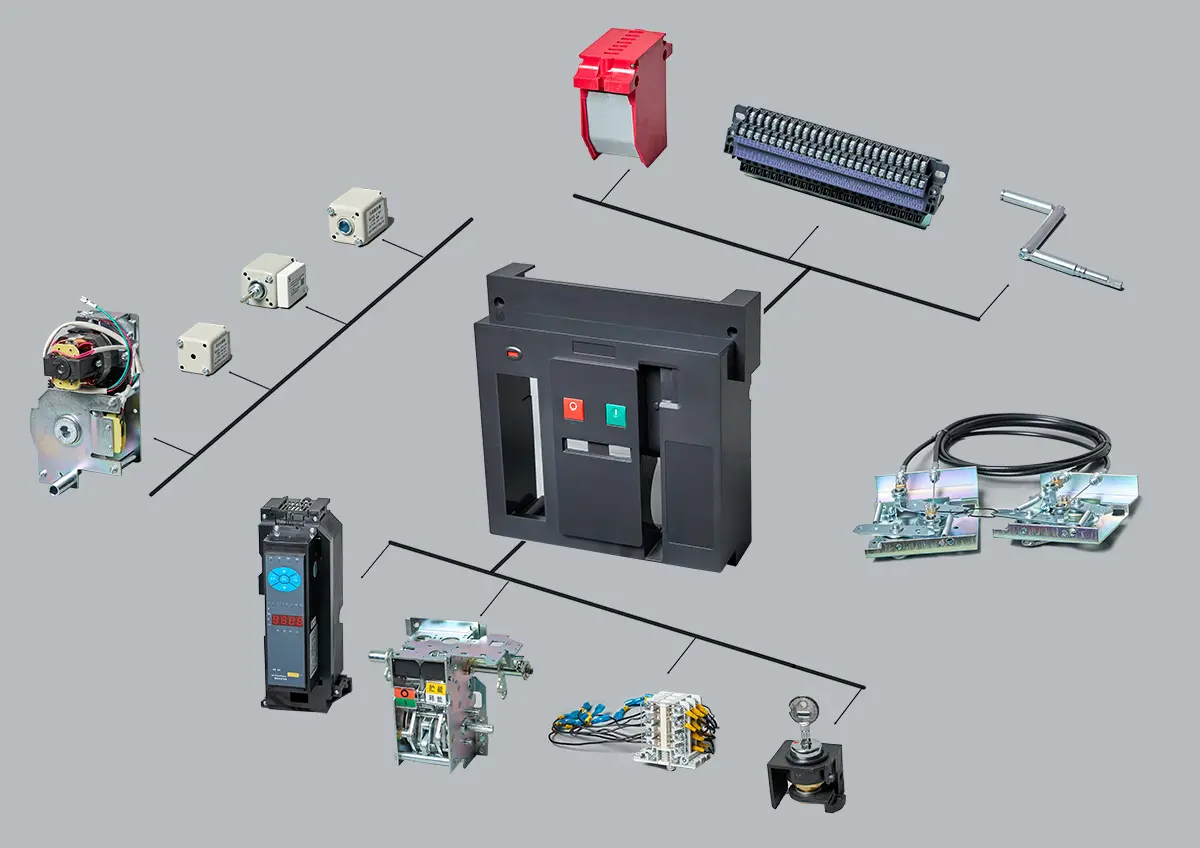

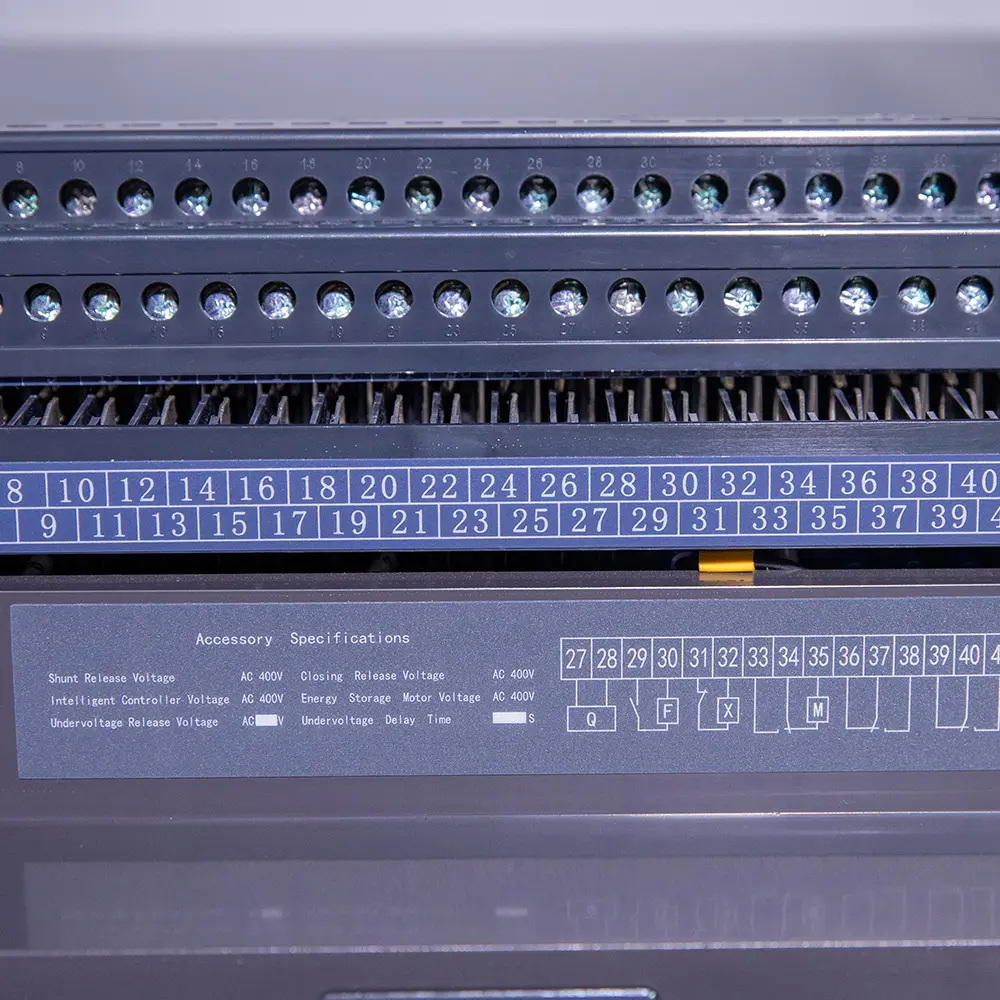

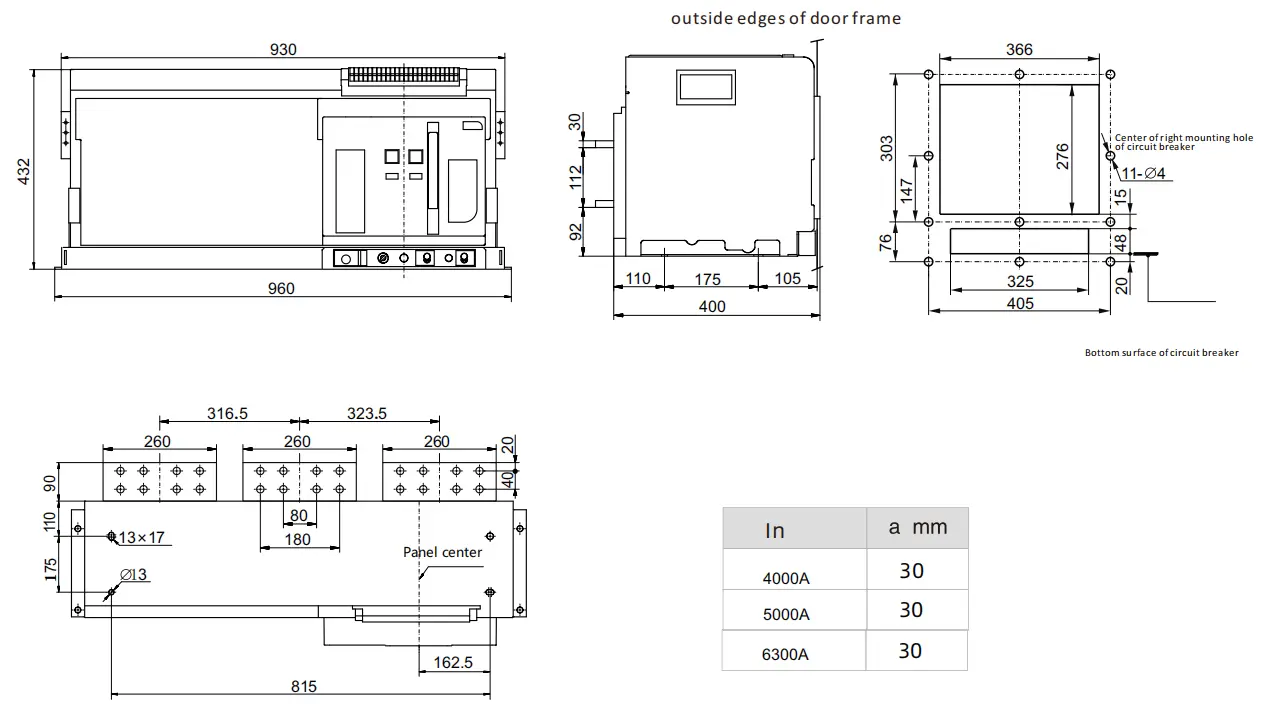

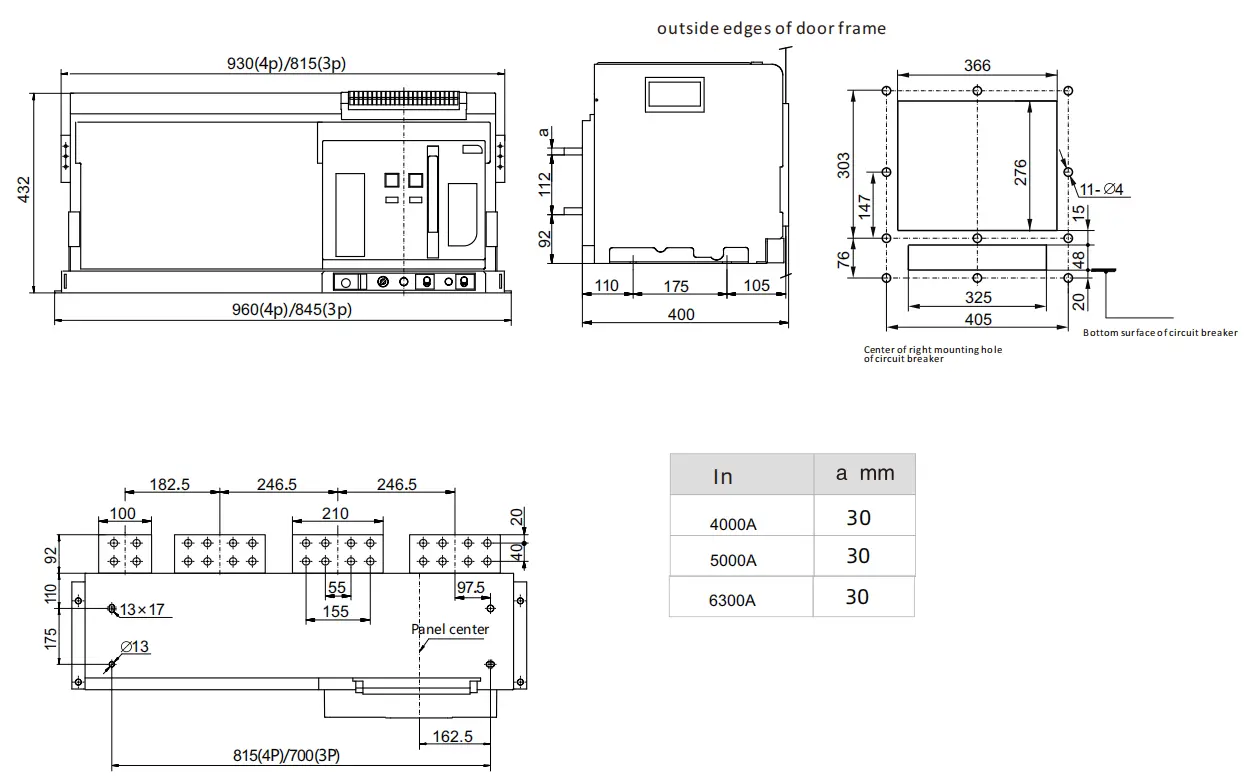

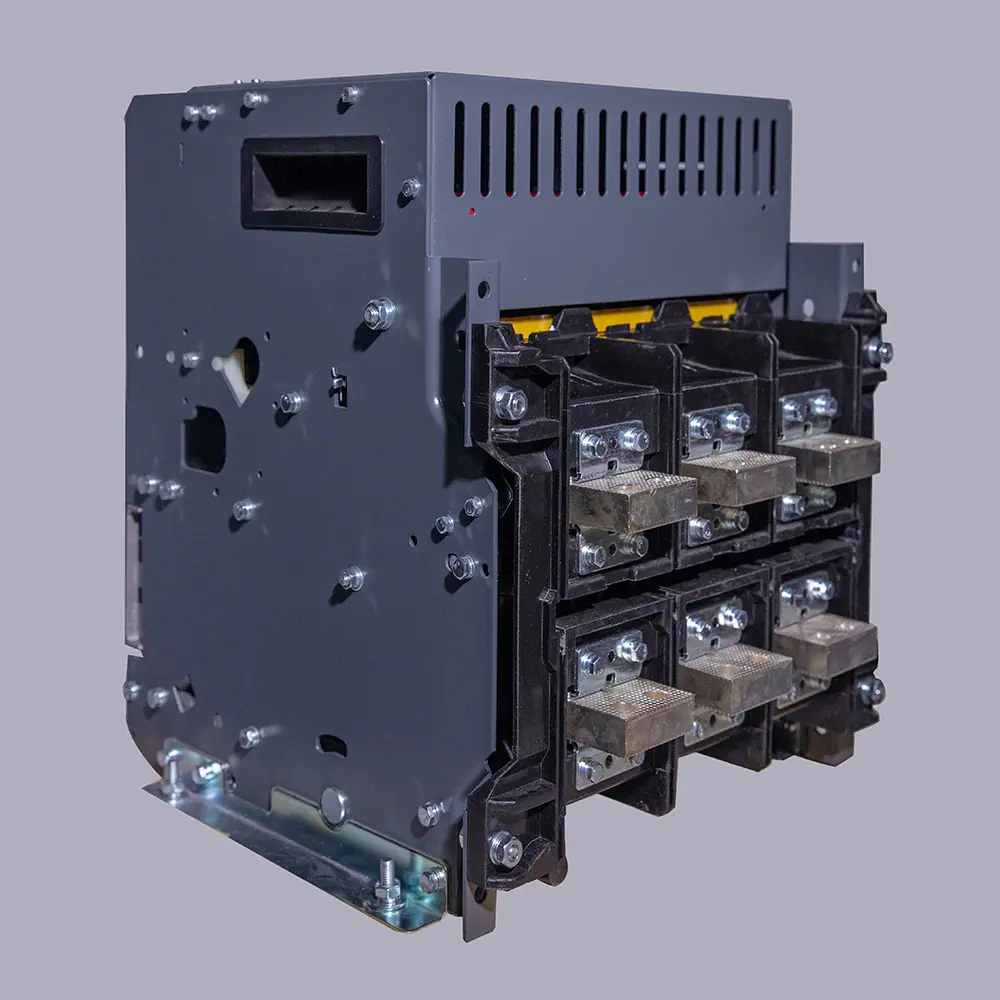

W*L*H (mm)
|
3P | 845×432×400 | / |
| 4P | 960×432×400 | / | |
| package 3p | / | ||
| package 4p | / | ||
| Weight 3p | 23300G | 7200G | |
| Weight 4p | 25000G | 8500G | |
