| Model | ARM3E-1250 | ||
| Rated current In (A) | 1250A (Ir: 800A/850A/900A/950A/1000A/1050A/1100A/1250A) | ||
| Rated current of frame size Inm (A) | 1250A | ||
| Usage category | Category B | ||
| Rated ultimate short-circuit breaking capacity level | H | ||
| Number of poles (P) | 3P | - | |
| Rated working voltage Ue (V) | 400V | ||
| Rated ultimate short-circuit breaking capacity Icu (kA) | 80kA | ||
| Rated service short-circuit breaking capacity Ics (kA) | 50kA | ||
| Rated short-time withstand current Icw (kA/1S) | 15KA/1s | ||
| Rated working voltage Ue (V) | 690V | ||
| Rated ultimate short-circuit breaking capacity Icu (kA) | 20KA | ||
| Rated service short-circuit breaking capacity Ics (kA) | 20KA | ||
| Rated insulation voltage Ui (V) | 1000V | ||
| Rated impulse withstand voltage Uimp (V) | 8kV | ||
| Mechanical life (time) | 2500 | ||
| Electrical life (time) | 500 | ||
| Arcing distance (mm) | ≤ 100 | ||
W*L*H (mm)
|
3P | 210*340*153.5 | |
| 4P | / | ||
| package 3p | - | ||
| package 4p | / | ||
| weight 3P | - | ||
| weight 4P | / | ||

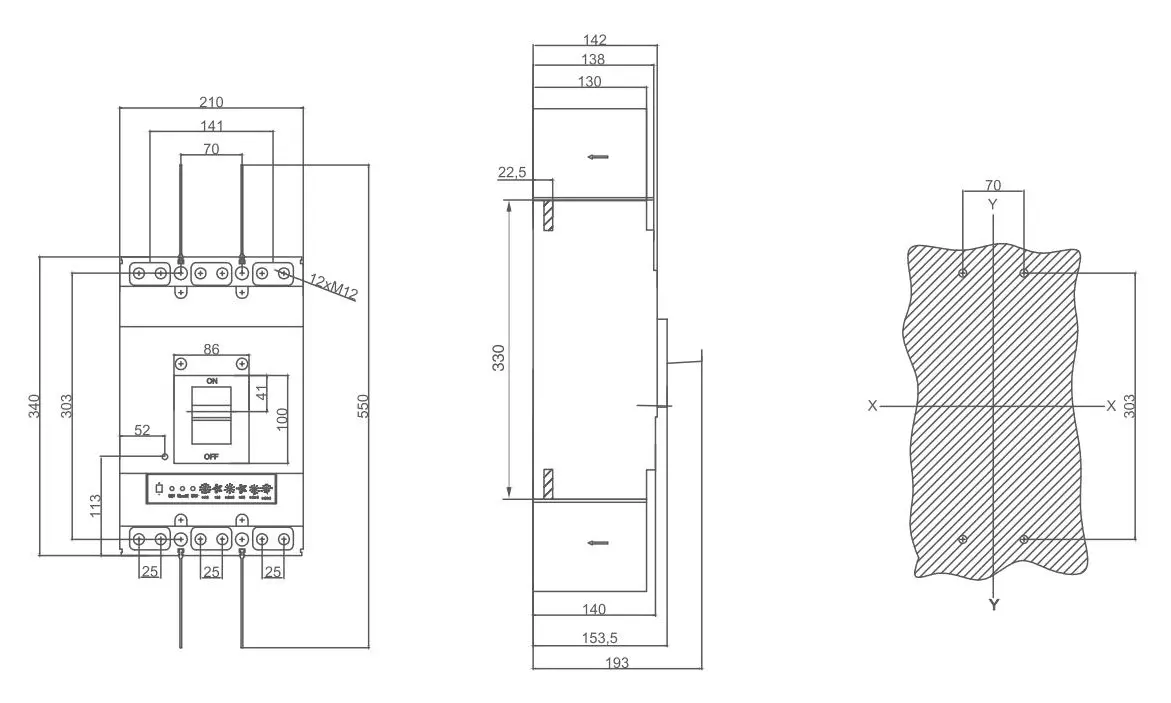

Circuit breaker 1250 frame size installation safety interval
■ ARM 3E-1250 front panel wiring (3P)
X-X, Y-Y are the center of three-pole circuit breaker
