Wholesale ARM3E Series electronic type adjustable type mccb 400V/690V 800 amp 3/4 Poles Built in LSIG Trip Unit Manufacturers, Factory
1 / 1
Wholesale ARM3E Series electronic type adjustable type mccb 400V/690V 800 amp 3/4 Poles Built in LSIG Trip Unit Manufacturers, Factory

Wholesale ARM3E Series electronic type adjustable type mccb 400V/690V 800 amp 3/4 Poles Built in LSIG Trip Unit Manufacturers, Factory

Rated Current : 630A、640A、660A、680A、700A、720A、740A、760A、780A、800A

Number Of Poles : 3P / 4P

Rated Working Voltage : 400V/690V

Send Inquiry

Product Description

MCCB Highlights

ARM3e
Advantages for MCCB Electronic type

Welding process flow of hardware parts:

  • 1
    Copper material - punching and forming - pickling - surface treatment/electroplating of copper parts - welding.
  • 2
    The after-sales rate of copper electroplating does not exceed 3 in 7 years. Following degreasing agent treatment, pickling, cleaning, silver plating (converting printing plate into silver molecules by electrolysis, adsorbed on copper by electrodes), cleaning, drying, and drying at 100 ℃, robust component parts are achieved.
  • 3
    Validated through 7.5% potassium sulfide experiments for up to 15 minutes, resolving defects like unstable welding and copper discoloration. This process guarantees that the electroplated coating will not blacken or discolor within the specified period.

Main performance index of ARM3E series circuit breaker

Model ARM3E-800
Rated current In (A) 630A, 640A, 660A, 680A, 700A, 720A, 740A, 760A, 780A, 800A
Rated current of frame size Inm (A) 800A
Usage category Category B
Rated ultimate short-circuit breaking capacity level M H
Number of poles (P) 3P 3P 4P 4P
Rated working voltage Ue (V) 400V
Rated ultimate short-circuit breaking capacity Icu (kA) 75kA 100KA
Rated service short-circuit breaking capacity Ics (kA) 50kA 65KA
Rated short-time withstand current Icw (kA/1S) 10KA/1s
Rated working voltage Ue (V) 690V
Rated ultimate short-circuit breaking capacity Icu (kA) 30KA
Rated service short-circuit breaking capacity Ics (kA) 20KA
Rated insulation voltage Ui (V) 1000V
Rated impulse withstand voltage Uimp (V) 8kV
Mechanical life (time) 2500
Electrical life (time) 500
Arcing distance (mm) ≤100
W*L*H (mm)
w*l*h dimensions
3P 210.5*281.116
4P 281*281.116
package 3p 260*310*175
package 4p 325*300*180
weight 3P 10267g
weight 4P 13103g

Overall and installation dimensions of circuit breaker

Circuit breaker 800 frame size installation safety interval

■ Front panel wiring (3P, 4P)

X-X, Y-Y are the center of three-pole circuit breaker

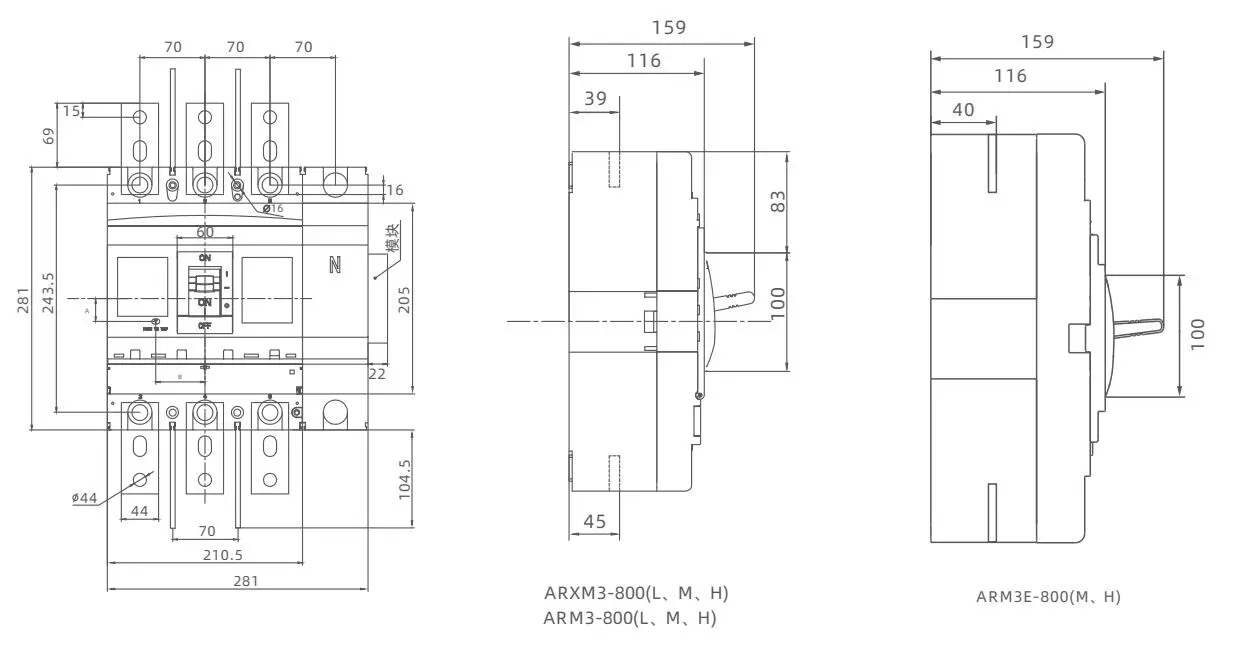

Front panel wiring dimensions 1

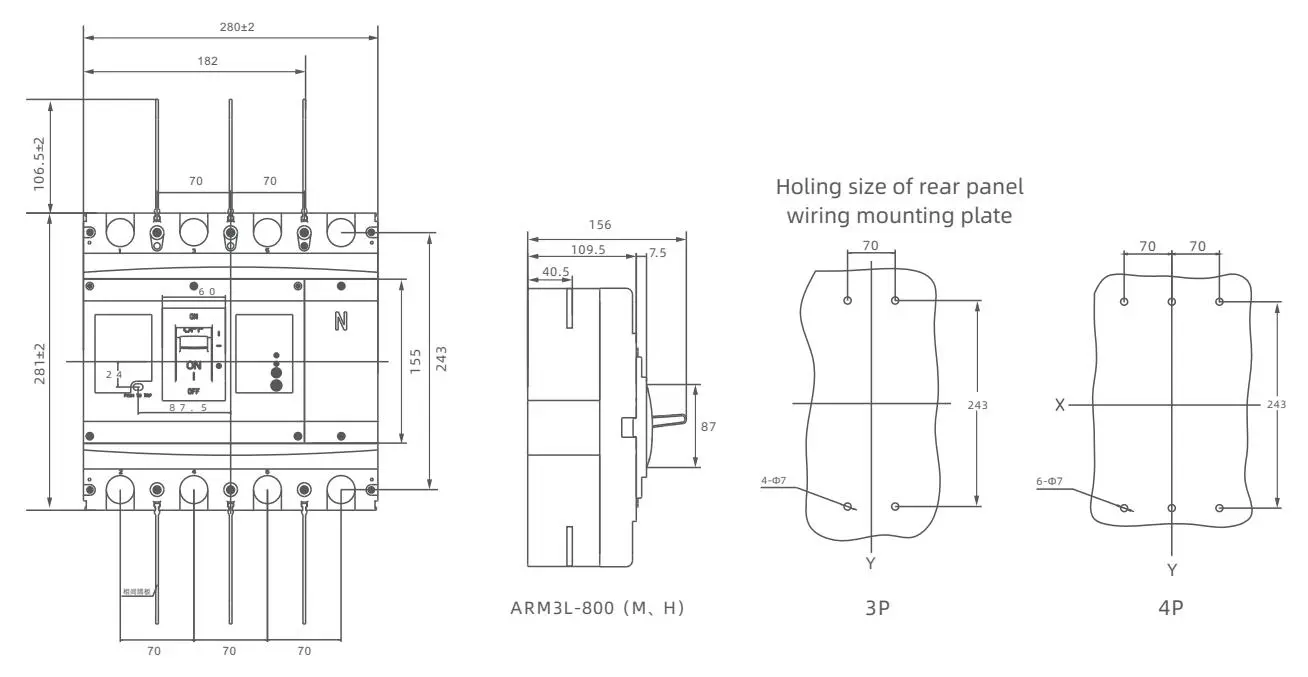

Front panel wiring dimensions 2

■ Rear panel wiring (3P, 4P)

X-X, Y-Y are the center of three-pole circuit breaker

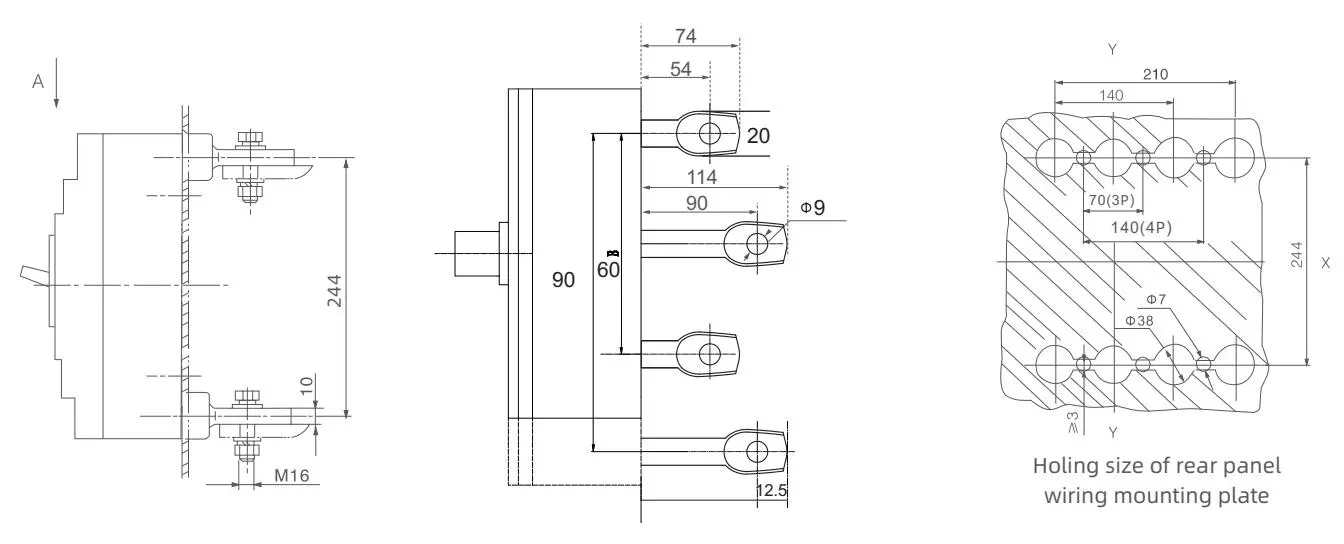

Rear panel wiring dimensions

■ Plug-in rear panel wiring (3P, 4P)

X-X, Y-Y are the centers of three-pole circuit breaker

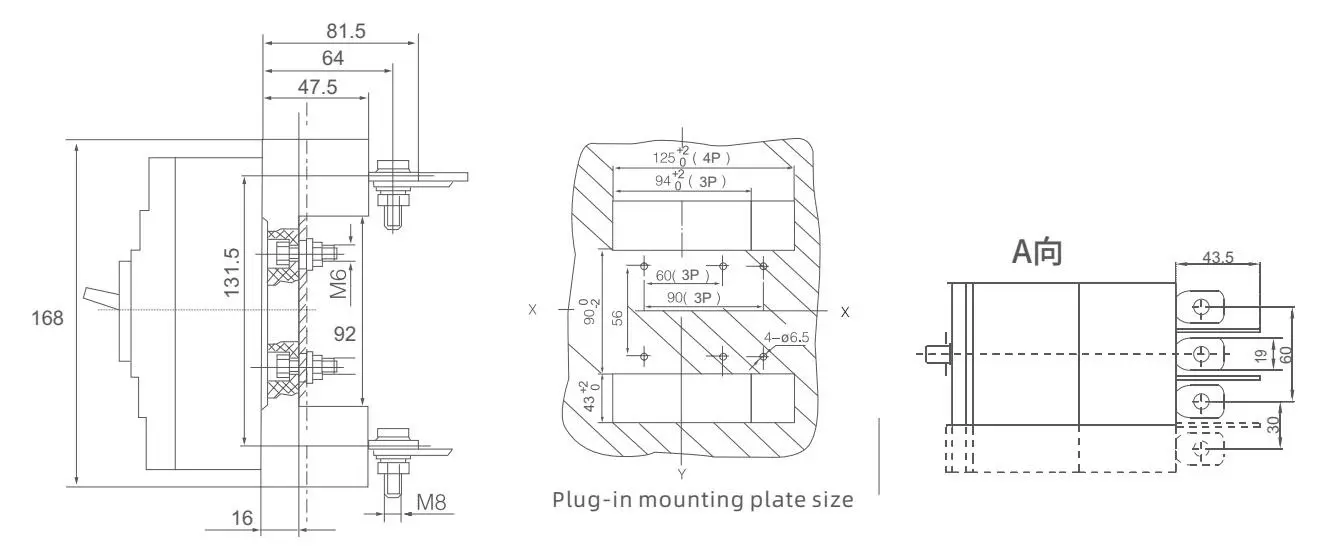

Plug-in rear panel wiring dimensions

MCCB Production Line Real Showing

mccb moulding metal stamping warehouse
Moulding Metal Stamping Warehouse
mccb moulding metal stamping production line
Moulding Metal Stamping Production Line
mccb parts processing device
Parts Processing Device
mccb parts device
Parts Device
mccb parts device copper
Copper Parts Processing Device
mccb molding office
Molding Office
mccb production team
Production Team
mccb automatic assembling device
Automatic Assembling Device
Frequently Asked Questions (FAQ)
What are the advantages of the ARM3E electronic type MCCB?
The ARM3E series electronic MCCB benefits from high-quality copper components undergoing specialized electroplating (silver plating via electrolysis) and pickling processes. It features an exceptionally low after-sales defect rate of less than 3 in 7 years, securing strong weld stability and long-term corrosion resistance.
How does the welding process prevent copper parts from discoloring?
During production, hardware parts undergo a 7.5% potassium sulfide experiment for up to 15 minutes. This process resolves unstable welding points and ensures the electroplated coating resists blackening and discoloration, maintaining optimal electrical conductivity.
What is the rated short-circuit breaking capacity (Icu) for the ARM3E-800?
For the ARM3E-800 model at 400V, the ultimate short-circuit breaking capacity (Icu) is 75kA for Class M and 100kA for Class H, ensuring high reliability in heavy-duty commercial or industrial settings.
What wiring installation options are available for the ARM3E series?
The circuit breaker supports multiple wiring configurations, including front panel wiring, rear panel wiring, and plug-in rear panel wiring for both 3-Pole (3P) and 4-Pole (4P) frame formats.
What are the operational lifespan and insulation parameters of this circuit breaker?
The ARM3E-800 features a mechanical life of 2,500 operations and an electrical life of 500 operations. It has a rated insulation voltage (Ui) of 1000V and can withstand impulse voltages (Uimp) up to 8kV.
