| Model | ARM6DC-250 | ||
|---|---|---|---|
| Rated current In (A) | 63A、80A、100A、125A、140A、160A、180A、200A、225A、250A | ||
| Number of poles (P) | 2P | 4P | |
| Rated working voltage Ue (V) | 1000VDC | 1500VDC | |
| Rated ultimate short-circuit breaking capacity Icu (kA) | 40kA | 20kA | |
| Rated service short-circuit breaking capacity Ics (kA) | 40kA | 20kA | |
| Rated insulation voltage Ui (V) | 1500V | ||
| impulse withstand voltage Uimp (kV) | 12kV | ||
| Mechanical life (time) | 7000 | ||
| Electrical life (time) | 1000 | ||
| Arcing distance (mm) | Upper/lower:100/0 | ||
| Left/right/front/rear: 0/0/0 | |||
|

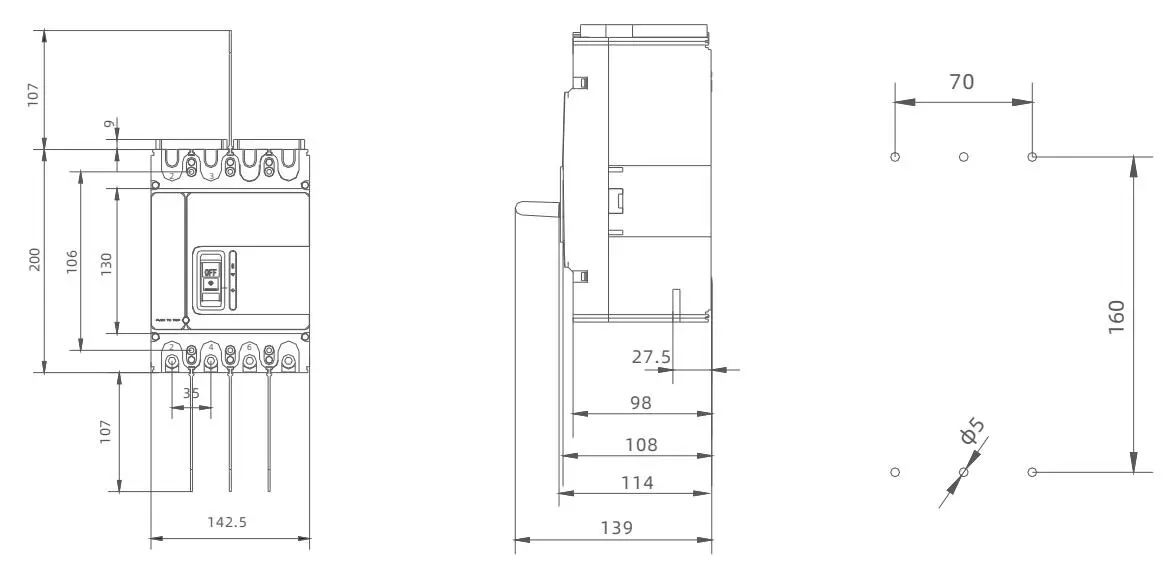

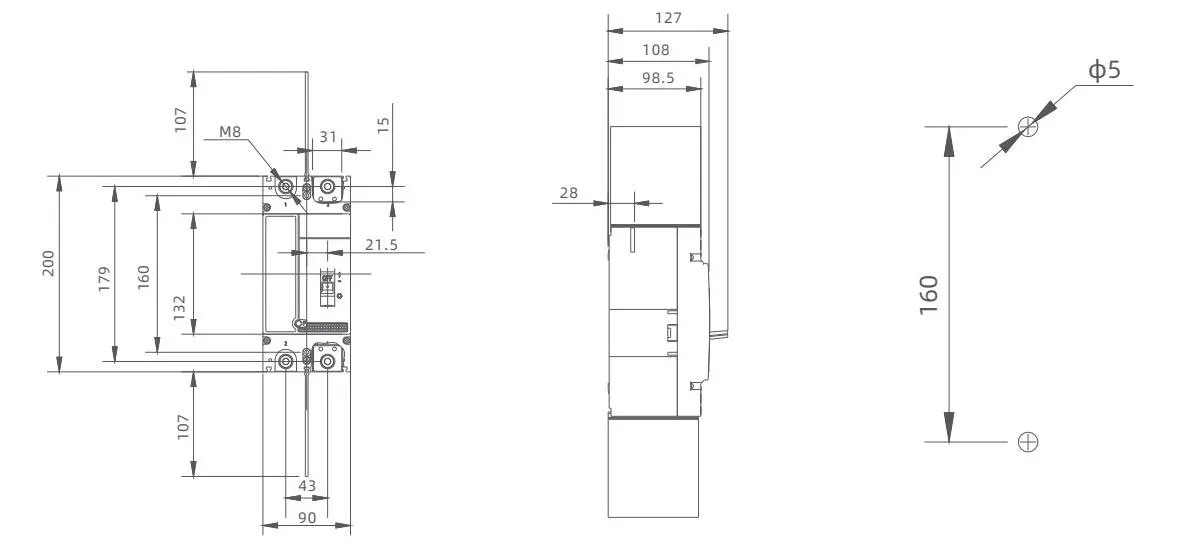

Overall dimension (mm)
|
W | 89.5 | 142.5 |
| L | 200 | 200 | |
| H | 108 | 108 | |

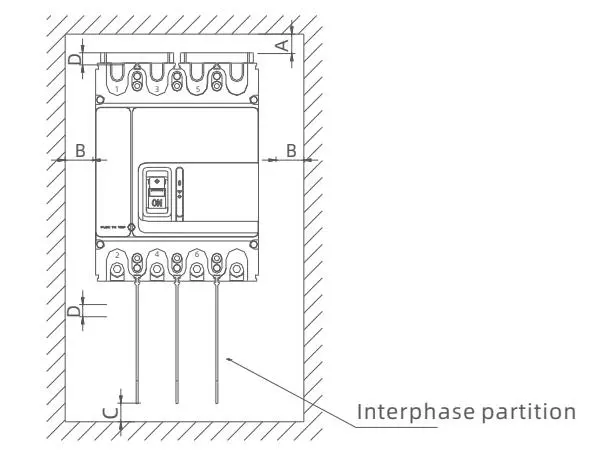

Minimum distance between circuit breaker and base plate, top plate and side plate
Minimum distance between circuit breakers in row
Minimum distance between circuit breakers in vertical row
| Code | Min. distance (mm) |
|---|---|
| A | 0 |
| B | 35 |
| C | 40 |
| D | 55 |
Minimum distance between circuit breaker and base plate, top plate and side plate
Minimum distance between circuit breakers in row
Minimum distance between circuit breakers in vertical row
| Code | Min. distance (mm) |
|---|---|
| A | 10 |
| B | 35 |
| C | 0 |
| D | 13 |
| E | 40 |
| F | 55 |
