MCCB Highlights

The second material advantage of ARXM3 thermal magnetic type mccb---- alloy contact with high silver content: the mccb's silver spots' content can reach 85%

High silver content, high conductivity, thermal conductivity, arc resistance, electric wear resistance.
Preparation of dynamic and static contact material standards and reliable process guarantee, improving the electrical life of circuit breaker by 50%.

Main performance index of ARXM3 series circuit breaker

ARXM3 Series Circuit Breaker

Model		ARXM3-250
Rated current In (A)		100A/125A/140A/160A/180A/ 200A/225A/250A
Rated current of frame size Inm (A)		250A
Usage category		Category A
Rated ultimate short-circuit breaking capacity level		S		L		M		H
Number of poles (P)		3P		3P	4P	3P	4P	3P	4P
Rated working voltage Ue (V)		400V
Rated ultimate short-circuit breaking capacity Icu (kA)		35kA		35kA		70kA		100kA
Rated service short-circuit breaking capacity Ics (kA)		22kA		35kA		50kA		70kA
Rated working voltage Ue (V)		690V
Rated ultimate short-circuit breaking capacity Icu (kA)		/		/		20kA		/
Rated service short-circuit breaking capacity Ics (kA)		/		/		10kA		/
Rated insulation voltage Ui (V)		1000V
Rated impulse withstand voltage Uimp (V)		8kV
Mechanical life (time)		7000
Electrical life (time)		1000
Arcing distance (mm)		≤50
WLH (mm)	3P	10716589		107165107
	4P	/		142165107
	package 3p	130174126		130174140
	package 4p	/		180185145
	weight 3P	2005g		2550g
	weight 4P	/		3300g

Overall and installation dimensions of circuit breaker

Circuit breaker 250 frame size installation safety interval

• Front panel wiring (3P, 4P)
X-X, Y-Y are the center of three-pole circuit breaker

Model	H	H1	A	B	C	D
ARM3-250C / L	89	110	36.2	23.3	40	59
ARXM3-250S	89	109	36.2	23.3	40	59
ARXM3-250L/M/H	107	126	36.2	23.3	40	59
ARXM3R-320S	89	109	36.2	23.3	40	59

Model	H	H1	A	B	C	D
ARM3-250M	107	127	36.2	23.3	40	59
ARM3E-250M/H	92	112	17.5	43.1	26	59
ARM3L-250M/H	92.5	112	17.5	43.1	26	59

Installation Dimensions Diagram 1

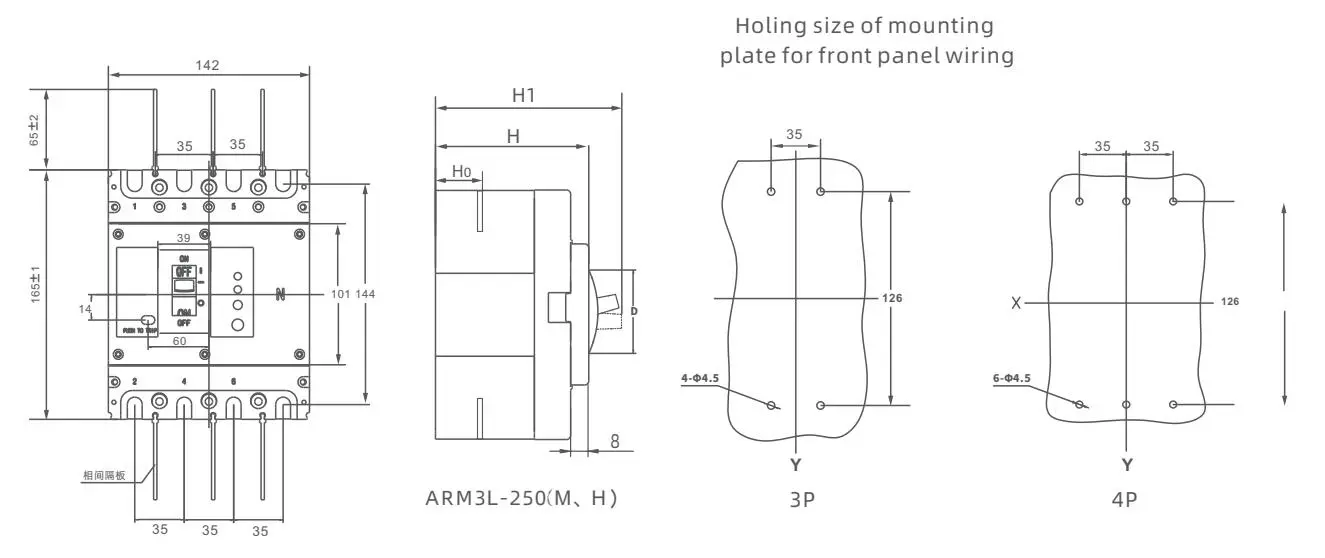

Installation Dimensions Diagram 2

• Rear panel wiring (3P, 4P)
X-X, Y-Y are the center of three-pole circuit breaker

Plug-in type mounting plate size

• Plug-in rear panel wiring (3P, 4P)
X-X, Y-Y are the center of three-pole circuit breaker

Plug-in rear panel wiring diagram
