To improve insulation performance and short-circuit breaking safety, a reinforced insulating base plate and zero flashover cover are specially integrated.
Raw materials, processes, and auxiliary materials are strictly controlled in compliance with the environmental requirements of the EU RoHS 2.0 directive.
Mechanism components and the release are optimized on the M3 structure platform, ensuring outstanding tripping accuracy. Mechanical life: 10,000 times; Electrical life: 2,000 times.
| Model | ARM6HU-630A | ||
|---|---|---|---|
| Rated current In (A) | 400A/500A/630A | ||
| Number of poles (P) | 3P | ||
| Breaking capacity level | M | ||
| Rated working voltage Ue (V) | 800V | ||
| Ultimate short-circuit breaking capacity Icu (kA) | 30 | ||
| Service short-circuit breaking capacity Ics (kA) | 23 | ||
| Rated working voltage Ue (V) | 1000V | ||
| Ultimate short-circuit breaking capacity Icu (kA) | 15 | ||
| Service short-circuit breaking capacity Ics (kA) | 15 | ||
| Rated insulation voltage Ui (V) | 1140V | ||
| Impulse withstand voltage Uimp (V) | 12kV | ||
| Mechanical life (time) | 4000 | ||
| Electrical life (time) | 1000 | ||
| Arcing distance (mm) |
(Up/Below)(mm): 100mm (Left/Right)(mm): 100mm (Front/Back)(mm): 0mm |
||

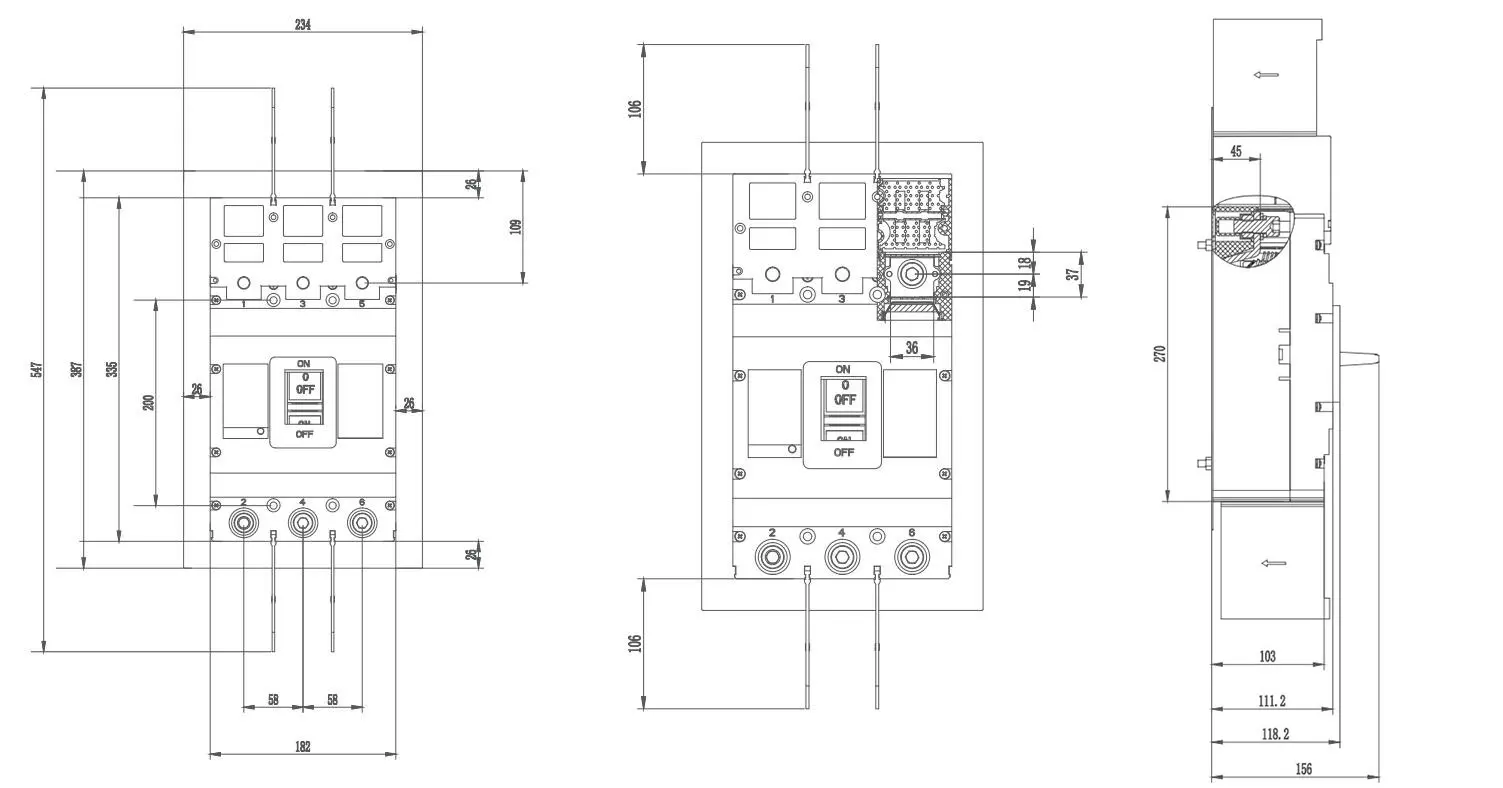

Overall dimensions (mm)
|
W | 182 | |
| L | 270 | ||
| H | 110.4 | ||
