ARM5 double breaking type high Icu=Ics MCCB Main functions and features
Pneumatic Protection Device: When the circuit breaks with large current, the gas in the contact unit box is rapidly pressurized, and the pneumatic protection device rapidly fluctuates the operating mechanism latch under strong air pressure, greatly reducing the damage of the breaking current to other electrical components and buses.
Magnetic Blow Design: The current flows through the fixed contact to generate an electromagnetic source, which forms an annular magnetic field arc with the iron core and quickly enters the arc extinguishing chamber under the action of the magnetic field, which is conducive to quickly break the current.
Main performance index of ARM5 series circuit breaker

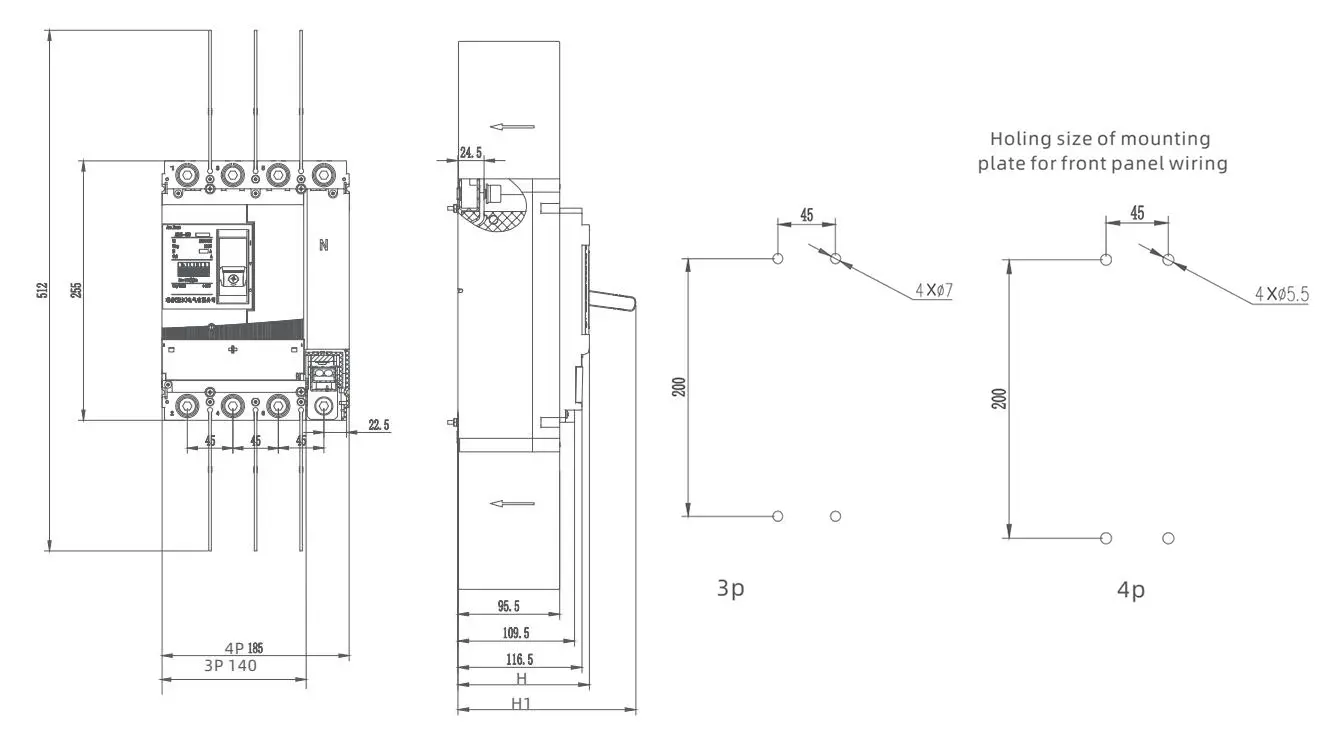

■ ARM5-400 front panel wiring (3P/4P) X-X, Y-Y are the center of three-pole circuit breaker
Model
H
H1
H0
B
C
D
ARM5-400
123.5
167.1
-
-
-
-
ARM5E-400
123.5
167.1
-
-
-
-
ARM5EHU-400
123.5
167.1
-
-
-
-
